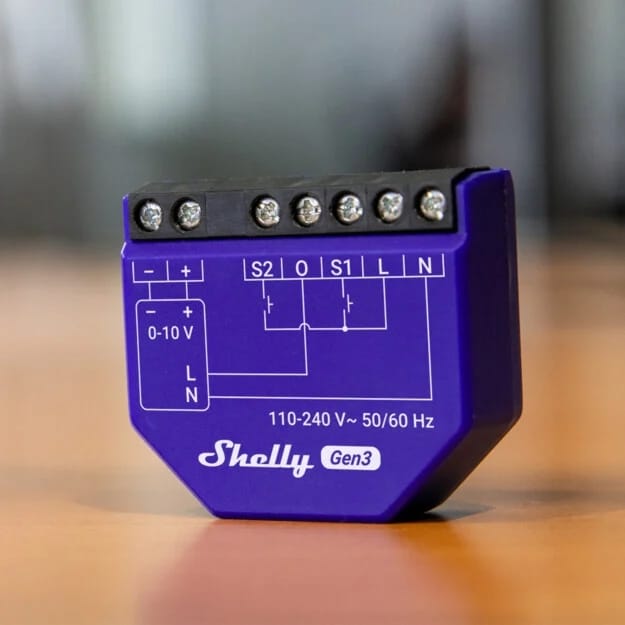

Shelly Dimmer 0/1-10V PM Gen3
20.00 JOD
Available
Wi-Fi operated smart dimming controller with power measurement
Designed to manage 0/1-10V dimming drivers, Shelly Dimmer 0/1-10V PM Gen3 offers precise dimming with power measurement. It is retrofit and can be used with any regular switch you have at home.
- Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.
- Wi-Fi and Bluetooth-operated
- Shelly Plus Add-On compatible: Supports connection with the sensor interface to measure different data (humidity, temperature, etc)
- One/dual button dimming mode (use with physical switches)
- Customizable thresholds and offsets for temperature, humidity and light if used with Plus Add-on
- Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed.
- Safety: Оver current/voltage/power protections
- Supports “Night mode”: Automatically sets the lights’ brightness at a low level during the night hours
- Wi-Fi Range Extender & BLE Gateway
- Equipped with a new processor & increased flash memory – ESP Shelly
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
specifications
| Physical | |
|---|---|

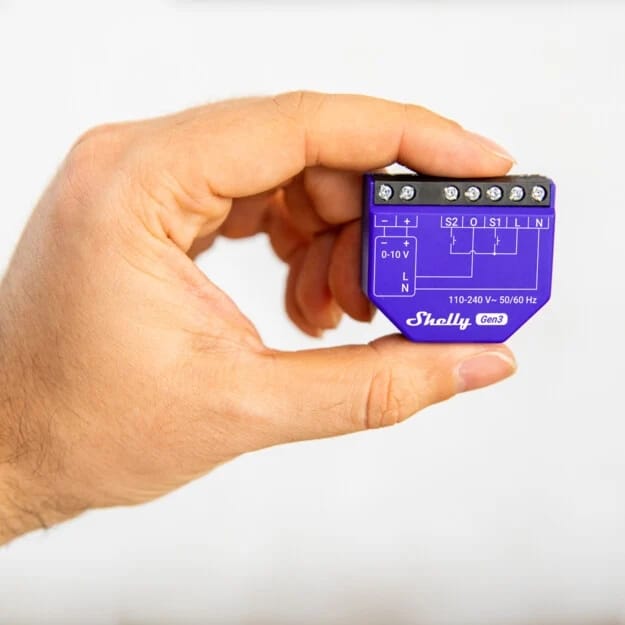

| Size (HxWxD): | 38.5×43.5x17mm / 1.52×1.71×0.67in |
| Weight: | 28.5 g / 0.99 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Mounting: | Wall console/behind wall/ceiling construction |
| Shell material: | Plastic |
| Environmental | |
| Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110-240 V~ 50/60 Hz |
| Power consumption: | < 1.5 W |
| External protection: | 16A, tripping characteristic B or C, 6 kA interrupting rating, energy limiting class 3 |
| Max. switching voltage: | 240 V~ |
| Max. switching current: | 13 A |
| Max. control current: | 35 mA |
| Voltmeter (AC): | 110 – 240 V |
| Ammeter (AC): | 50 mA – 16 A |
| Meters accuracy: | ±10% |
| Power and energy meters: | Active and apparent power/Active and apparent energy |
| Power factor | |
| Measurement data storage: | No |
| Internal-temperature sensor: | Yes |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2401-2495 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and up to 50 m / 160 ft outdoors (depending on local conditions) |
| Bluetooth | |
| Protocol: | 4.2 |
| RF band: | 2400-2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
| Microcontroller unit | |
| CPU: | Shelly ESP32 C3 |
| Clock frequency: | 40 Mhz |
| Flash: | 8MB |
| Microcontroller unit | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| Advanced schedules: | Yes |
| KVS (Key-Value Store): | Yes |
