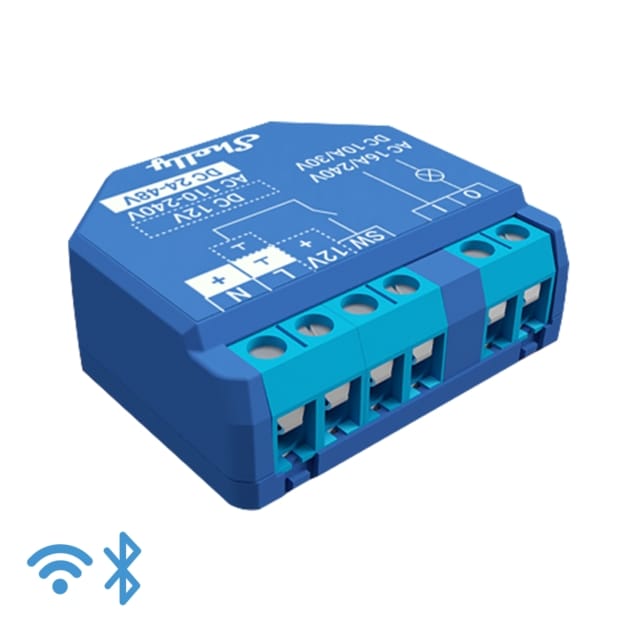

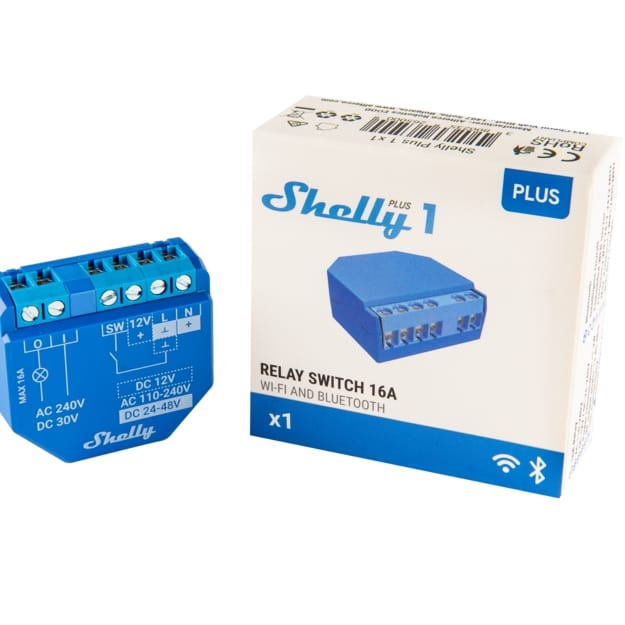

Shelly Plus 1

15.00 JOD

Years Manufacturer Warranty

Available

WiFi-operated smart switch, 1 channel 16A

Control a wide range of home appliances and office equipment (lights, power lines, security systems, heaters, radiators, sockets, LED strips, etc.) from anywhere.

Dry contacts
Extremely fast processor – ESP32, Improved API interface
Enhanced safety
Enhanced security – MQTT and WSS support, TLS and custom certificates support

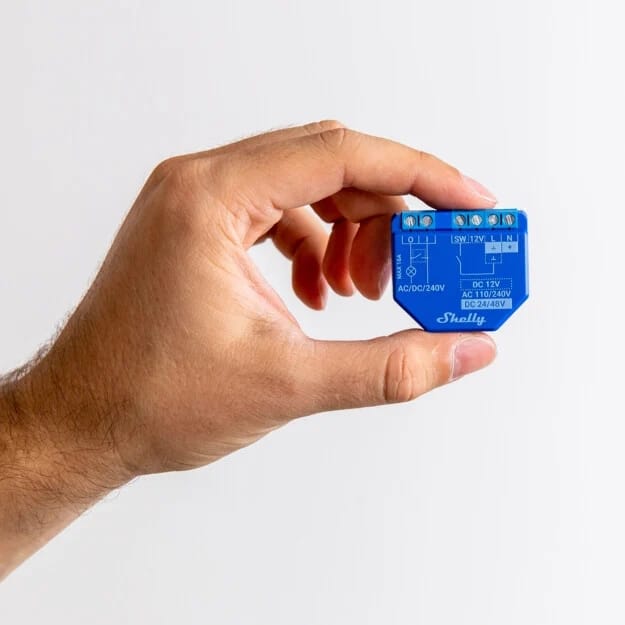

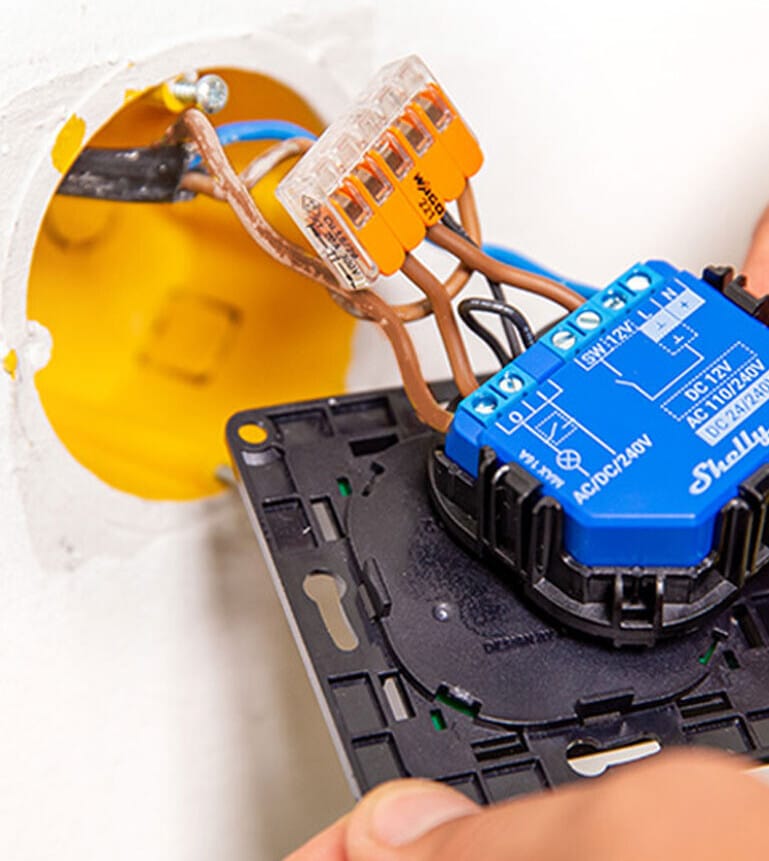

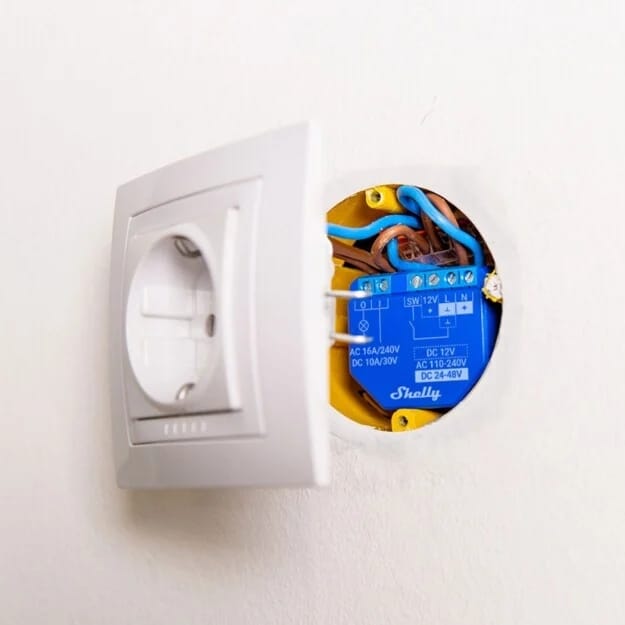

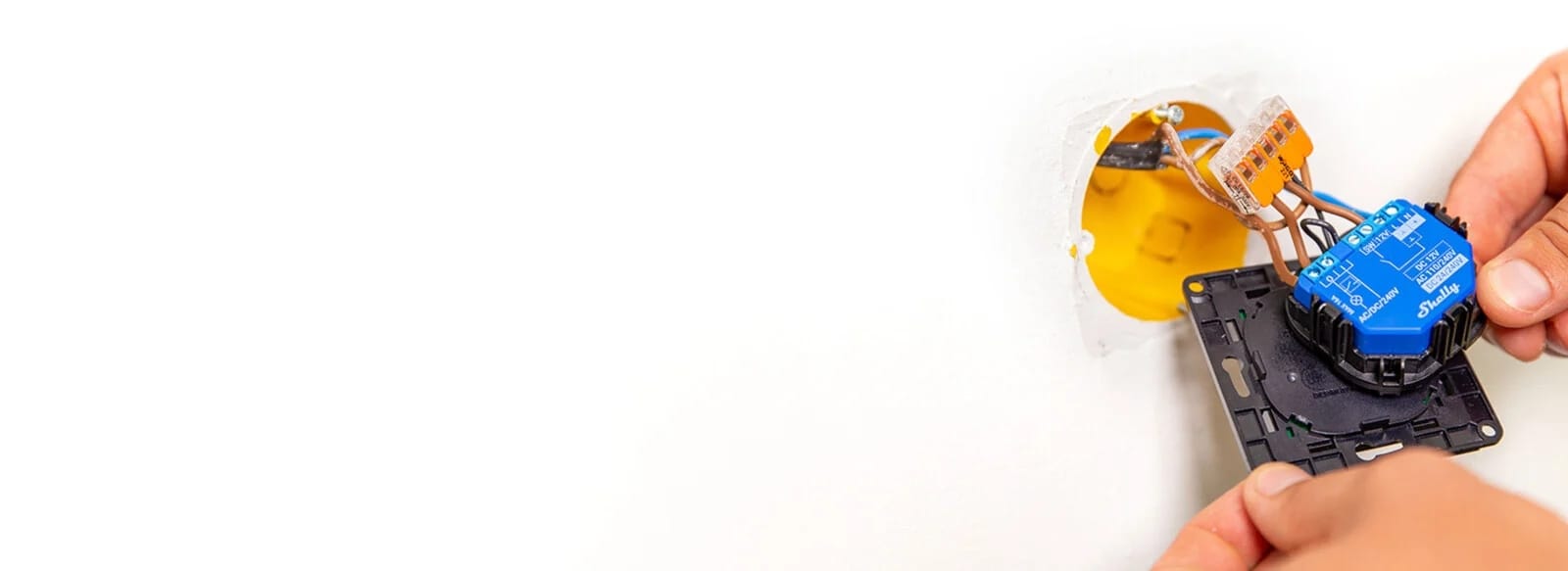

Designed to fit in most standard electrical boxes and switches
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

specifications

Physical
Size (HxWxD):	37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in
Weight:	26 g / 0.92 oz
Mounting:	Wall console
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length:	5 to 6 mm / 0.20 to 0.24 in
Shell material:	Plastic
Color:	Blue
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Electrical
Power supply:	110 – 240 VAC / 24 – 48 VDC / 12 VDC ±10%
Power consumption:	< 1.2 W
Output circuits ratings
Max switching voltage AC:	240 V
Max switching voltage DC:	30 V
Max switching current AC:	16 A
Max switching current DC:	10 A
Sensors, meters
Temperature sensor:	Yes
Radio
RF band:	2400 – 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32
Flash:	4 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	mJS
MQTT:	Yes
CoAP:	No
