Shelly Plus 1PM
16.00 JOD
Available
Wi-Fi-operated smart relay, 1 channel 16A, with Power Metering
Control and measure power consumption for a wide range of home appliances and office equipment (lights, power lines, security systems, heating radiators, air conditioners, etc.) from anywhere.
- Power metering
- Extremely fast processor ESP32, Improved API interface
- Enhanced safety
- Enhanced security – MQTT and WSS support, TLS and custom certificates support

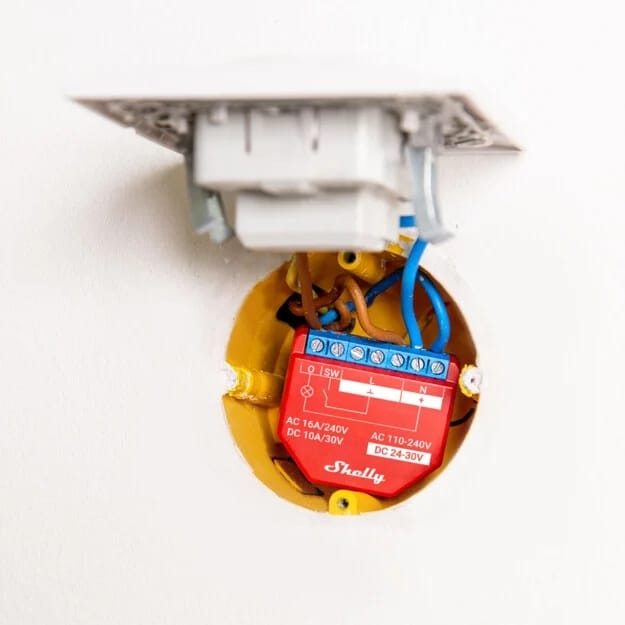

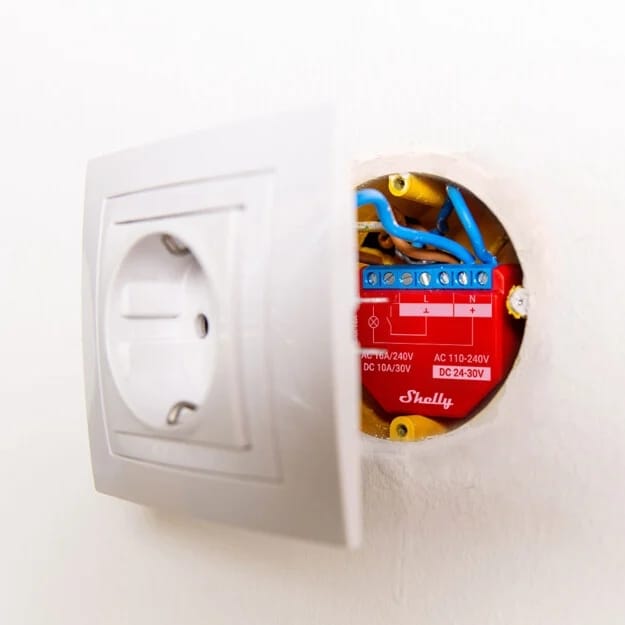

- Designed to fit in most standard electrical boxes and switches
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
specifications
| POWER | |
|---|---|
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Maximum load | 16A |
| Power supply DC | 24 – 30V |
| Channels | 1 Channel |
| SPECIAL FUNCTIONS | |
| Dry contacts | No |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Overload protection | Yes |
| Power measurement | Yes |
| Working without a neutral line | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20°C to + 40 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 – 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| DIMENSIONS | |
| Size | 42 x 38 x 17mm |
