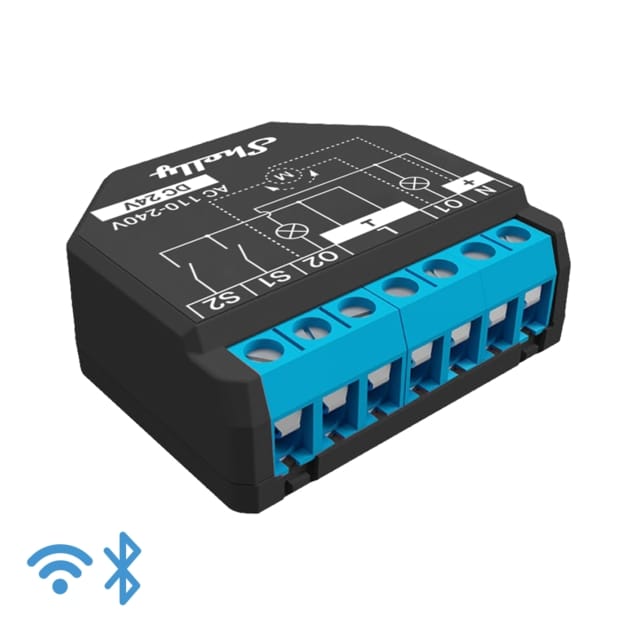

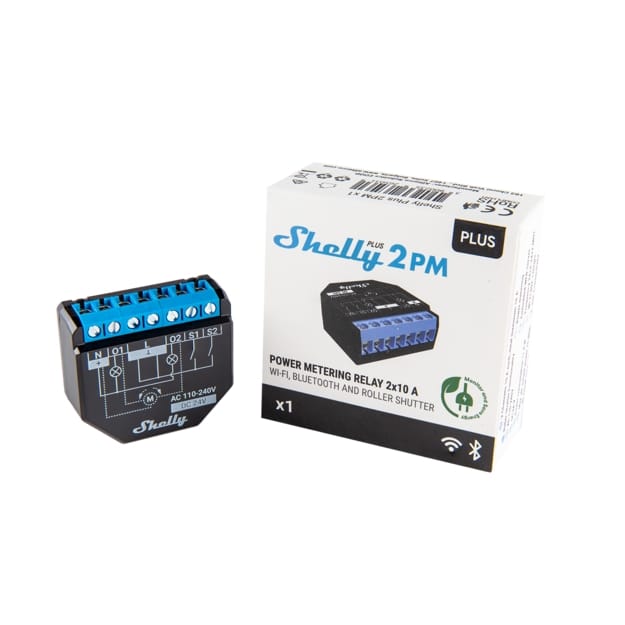

Shelly Plus 2PM

25.00 JOD

Years Manufacturer Warranty

Available

Wi-Fi-operated smart switch, 2 channels 16A total current (18A peak)

2 channels on the same phase
Power metering on each channel
Cover (roller) control- automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
Scripting, schedules, and webhooks

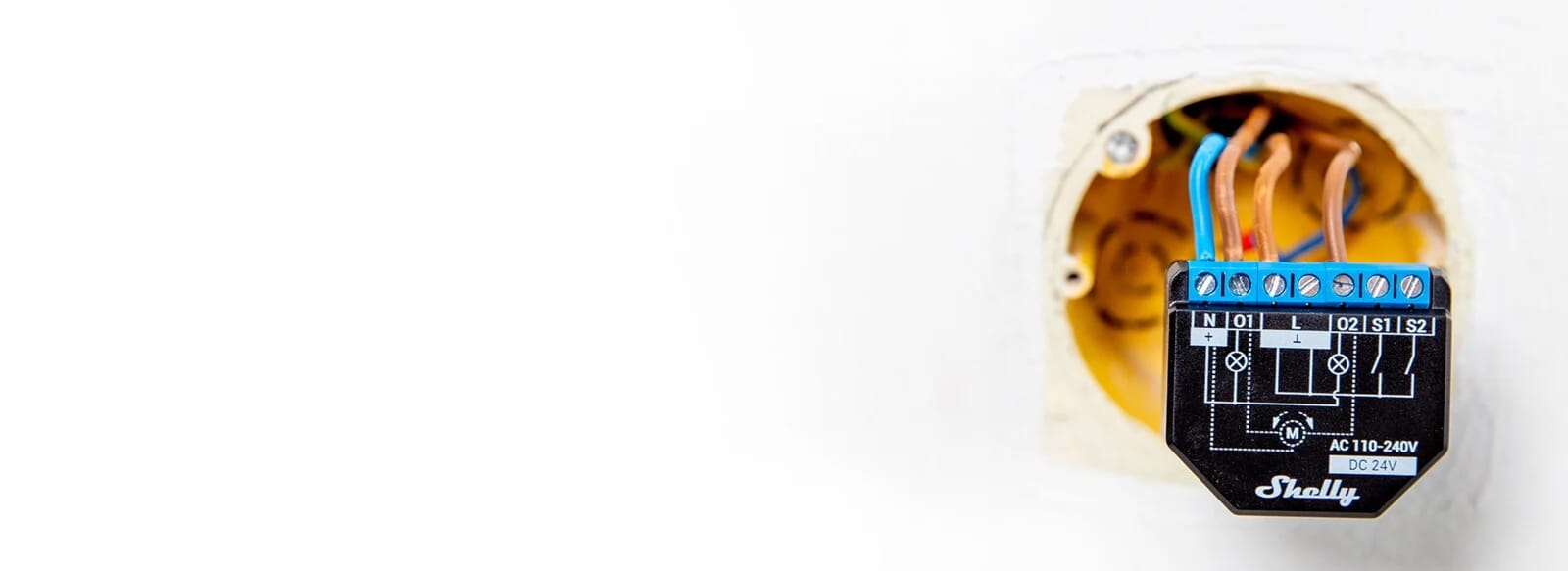

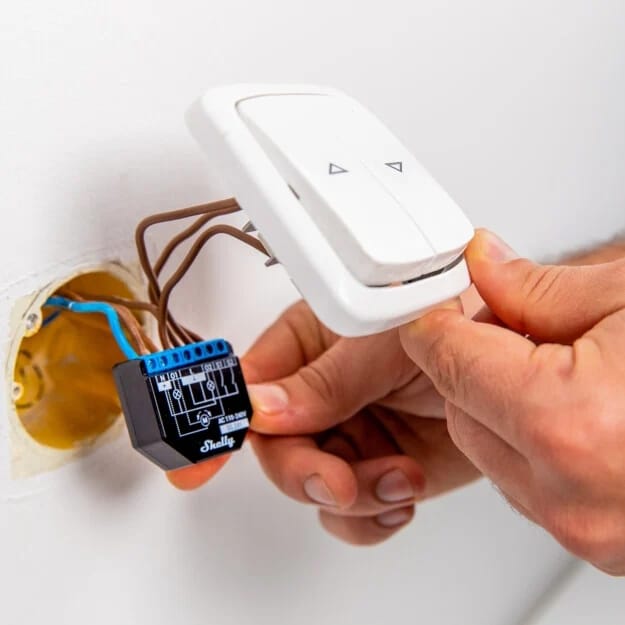

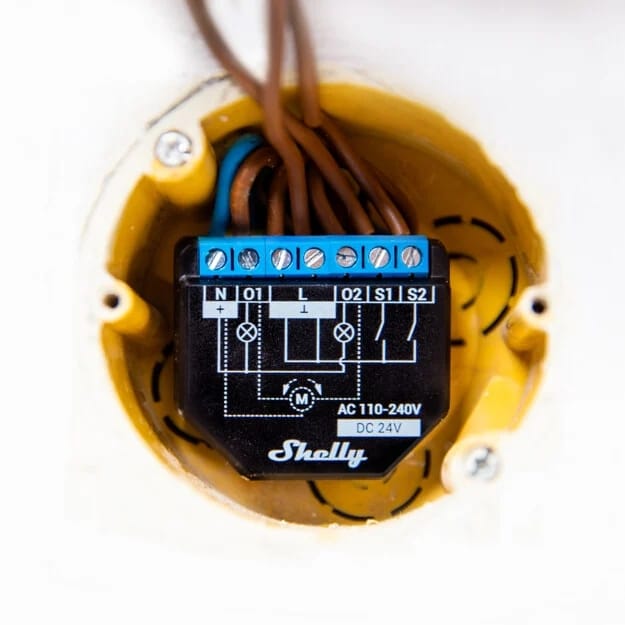

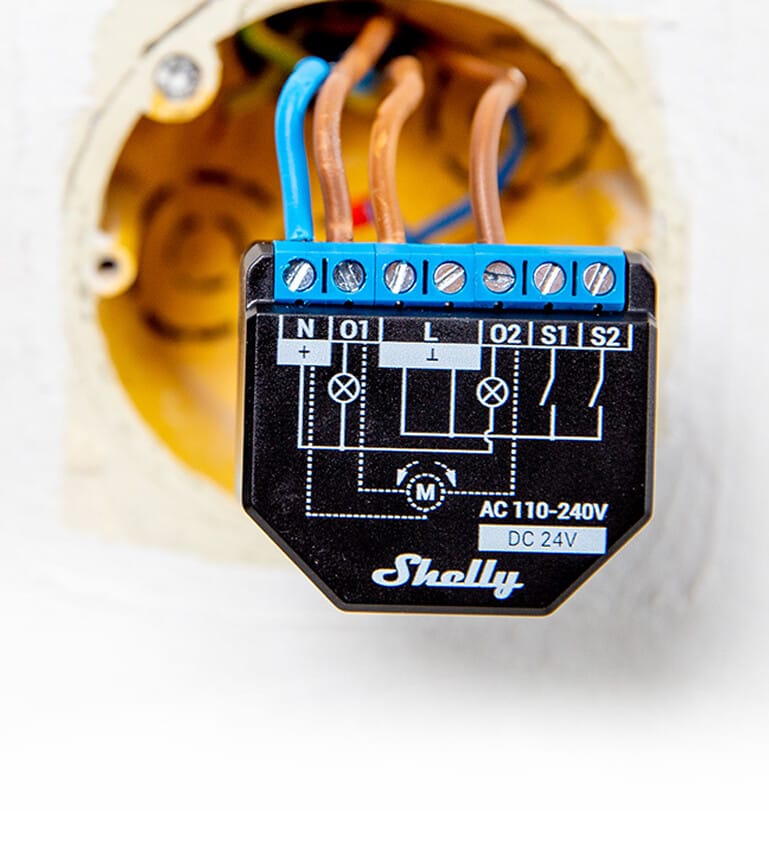

Designed to fit in most standard electrical boxes and switches
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants

specifications

Physical
Size (HxWxD):	37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in
Weight:
Mounting:	Wall console
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length:	5 to 6 mm / 0.20 to 0.24 in
Shell material:	Plastic
Color:	Black
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Electrical
Power supply:	110 – 240 VAC / 24 VDC ±10%
Power consumption:	< 1.4 W
Output circuits ratings
Max switching voltage AC:	240 V
Max switching voltage DC:	30 V
Max switching current AC:	10 A (per channel), 16 A (total), 18 A (total peak)
Max switching current DC:	10 A
Sensors, meters
Temperature sensor:	Yes
Voltmeter (AC)	Yes
Ammeter (AC)	Yes
Radio
RF band:	2400 – 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32
Flash:	4 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	mJS
MQTT:	Yes
CoAP:	No
