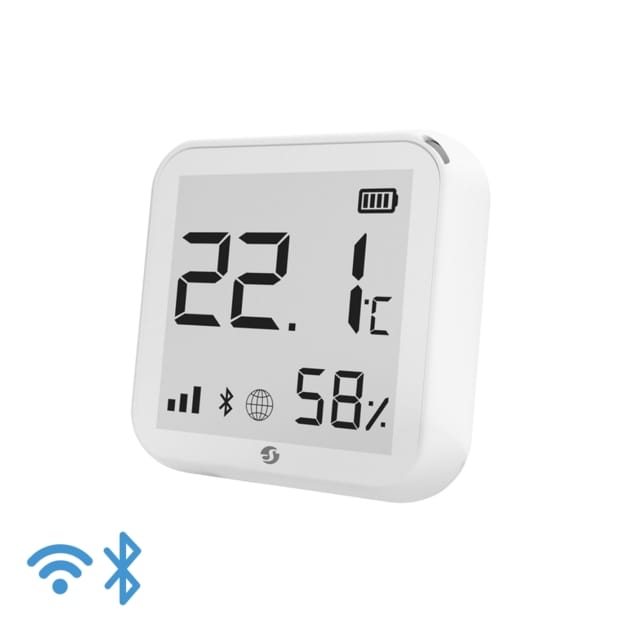

Shelly Plus H&T
Available
Wi-Fi Humidity & Temperature sensor working over 1 year on a single charge
- Enhanced with a low a consuming e-ink display
- Works with type-C USB slot (for faster connection)
- Batteries 4 x 1.5 V AA (LR) batteries (not included)
- Low battery consumption (Up to 1-year life of the batteries)

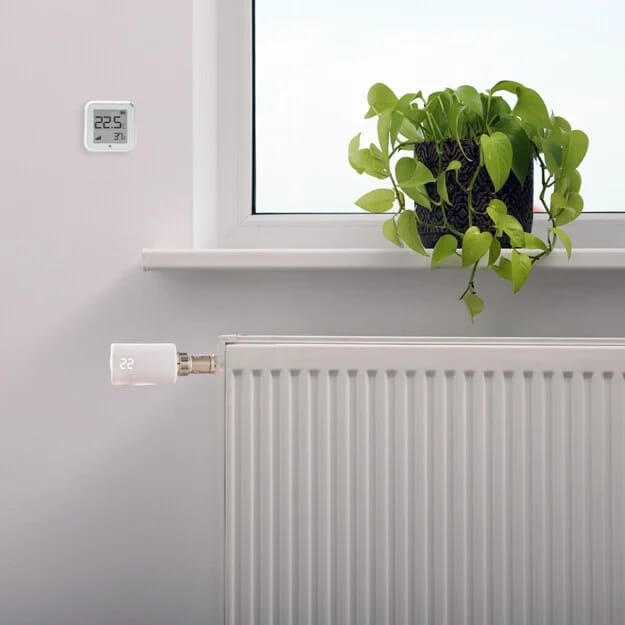

- Wall mountable
- Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.
- Has an embedded web server and connects to your Wi-Fi network
specifications
| Physical | |
|---|---|
| Size (HxWxD): | 70x70x26 mm / 2.76×2.76×1.02 inch (without stand) 70x70x45 mm / 2.76×2.76×1.77 inch (with stand) |
| Weight: | |
| Mounting: | With stand (on horizontal surface) Wall mounting (using screws with head diameter 5-7 mm / 0.20-0.28 inch and max 3 mm / 0.12 inch thread diameter or double sided foam sticker) |
| Shell material: | Plastic |
| Color: | White |
| Environmental | |
| Ambient temperature: | 0 °C to 40 °C / 32 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply, Batteries | 4 AA (LR6) 1.5 V (not included) |
| Estimated battery life | approx. 1 year (depending on batteries used, temperature and humidity changes, and network connection strength) |
| Power supply, USB | Type-C (power adapter and cable not included) |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Schedules: | No |
| Webhooks (URL actions): | 10 with 2 URLs per hook |
| Scripting: | No |
| MQTT: | Yes |
| CoAP: | No |
