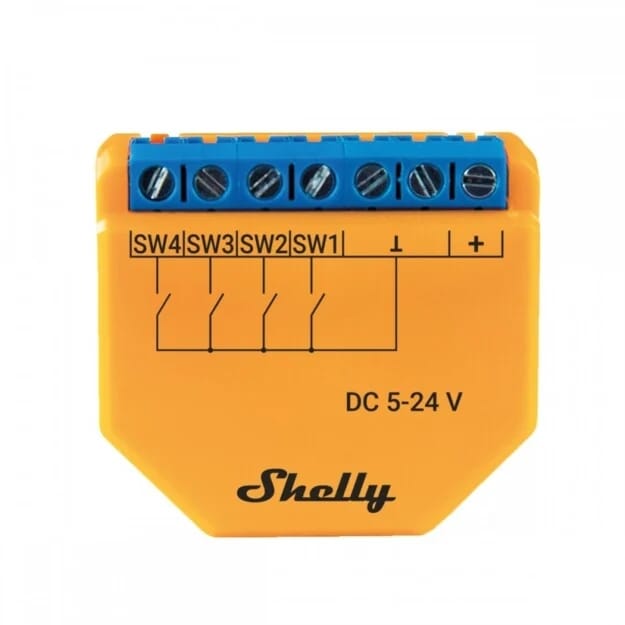

Shelly Plus i4 DC
13.00 JOD
Available
Wi-Fi-operated 4-digital inputs controller for enhanced actions control
Manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios.
Shelly Plus i4 DC is an input reader device (it does not contain relays)
- Extremely fast processor – ESP32, Improved API interface
- Multi-click – Up to 16 possible actions
- Java Scripts support for customized and complex scenarios
- Designed to fit in most standard electrical boxes and switches
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
- Has an embedded web server and connects to your Wi-Fi network
specifications
| Physical | |
|---|---|
| Size (HxWxD): | 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in |
| Weight: | 17 g / 0.6 oz |
| Mounting: | Wall box |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 5 – 24 VDC |
| Power consumption: | < 1 W |
| Sensors, meters | |
| Temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 – 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | mJS |
| MQTT: | Yes |
| CoAP: | No |
