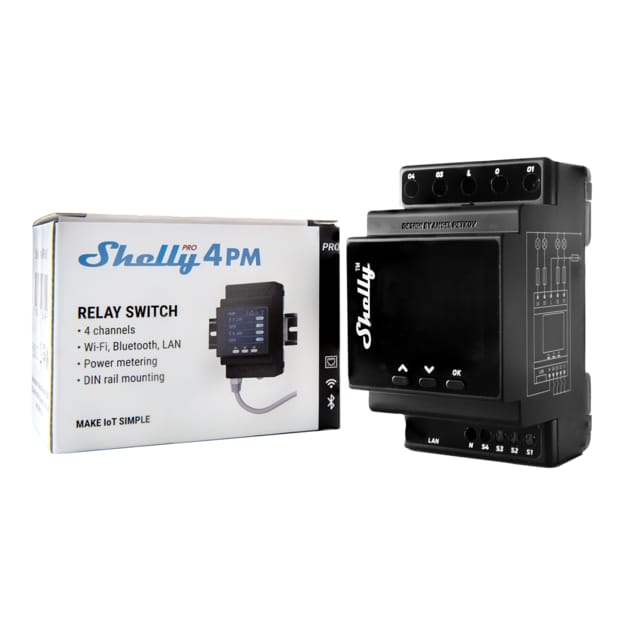

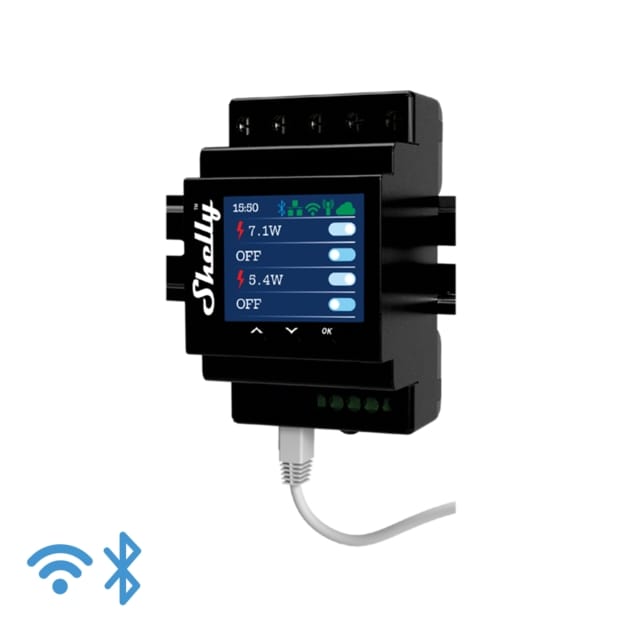

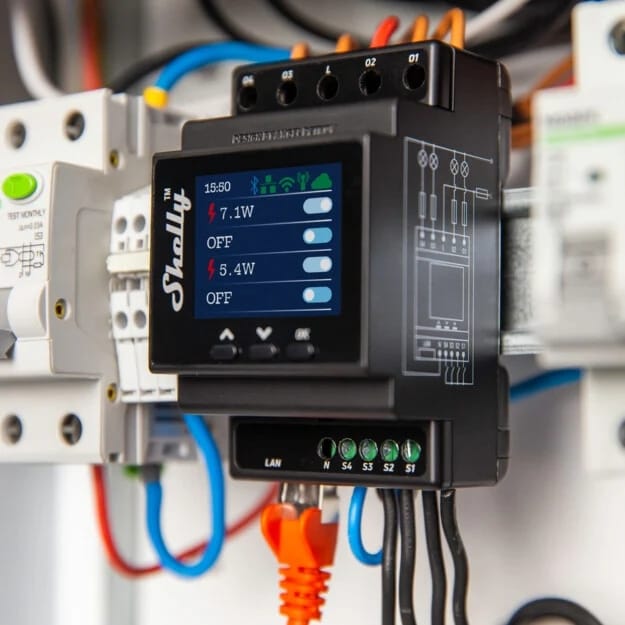

Shelly Pro 4PM

93.00 JOD

Years Manufacturer Warranty

Available

Professional 4-channel DIN rail smart switch with power metering

LAN, Wi-Fi, and Bluetooth connection
4 outputs, 16A each. Total device maximum of 40A
Precise power metering
Overpower and overvoltage protection of the load.
DIN rail mountable
1.8-inch color screen with navigation keys
1- phase control
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistant

specifications

Physical
Size (HxWxD):	96x53x59 ±0.02 mm / 3.78×2.01×2.32 ±0.02 in
Weight:
Mounting:	DIN rail
Screw terminals max torque:	0.4 Nm / 3.5 lbin (green connectors)
Conductor cross section:	0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in (green connectors)
Shell material:	Plastic
Color:	Black
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply voltage AC:	110 – 240 V
Power supply voltage DC:	N/A
Power consumption:	< 4 W
Neutral not needed:	No
Output circuits ratings
Max switching voltage AC:	240 V
Max switching voltage DC:	N/A
Max switching current AC:	16 A per channel, 40 A total
Max switching current DC:	N/A
Sensors, meters
Voltmeter (AC)	Yes
Ammeter (AC)	Yes
Temperature sensor:	Yes
Radio
RF band:	2400 – 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32-D0WDQ6
Flash:	8 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	mJS
MQTT:	Yes
CoAP:	No
