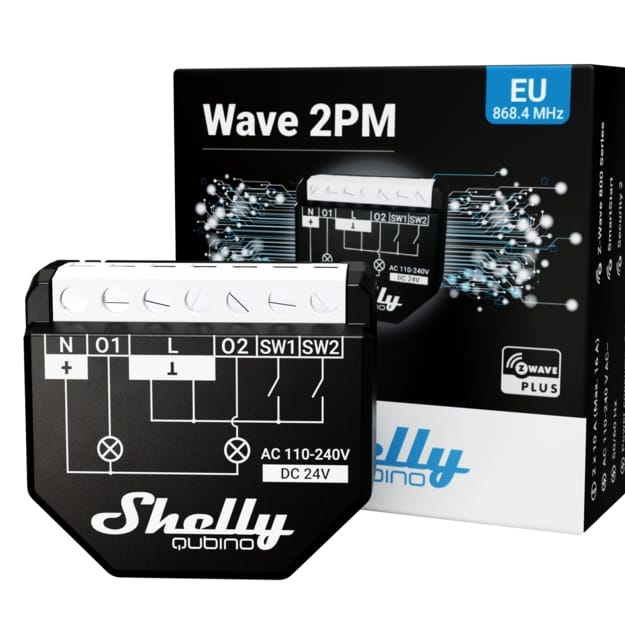

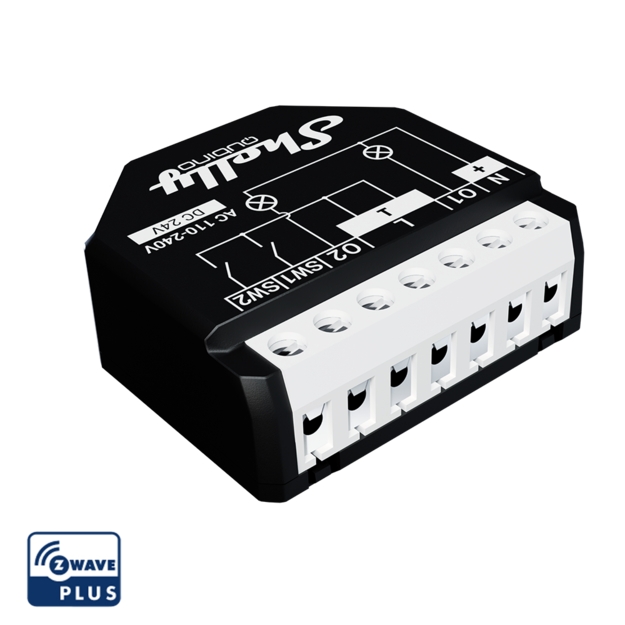

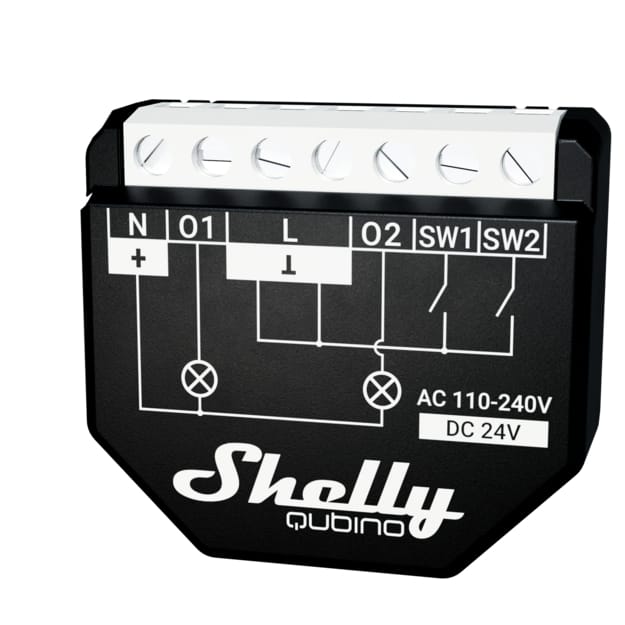

Shelly Qubino Wave 2PM
34.00 JOD
Available
Z-Wave™ smart switch, 2 channels 16 A total current (18 A peak), with power metering
Remotely control two independent electrical appliances (e.g. lights) and monitor their power consumption separately and in total.
- 2 channels (2x 10 A, 16 A total)
- Power metering on each channel and in total
- Extremely low power consumption: 0.3 W.
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates

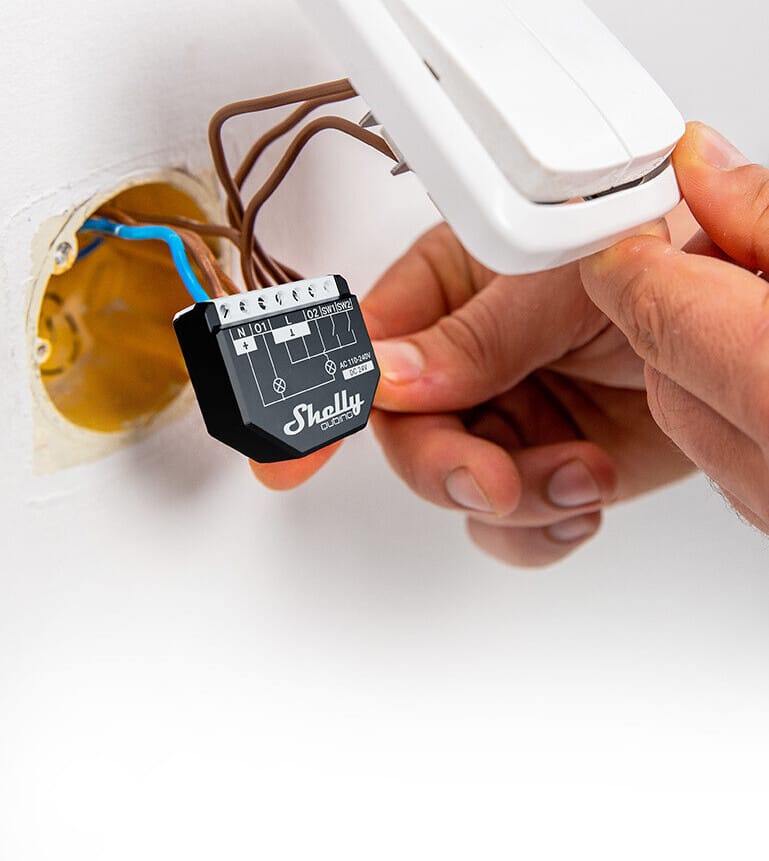

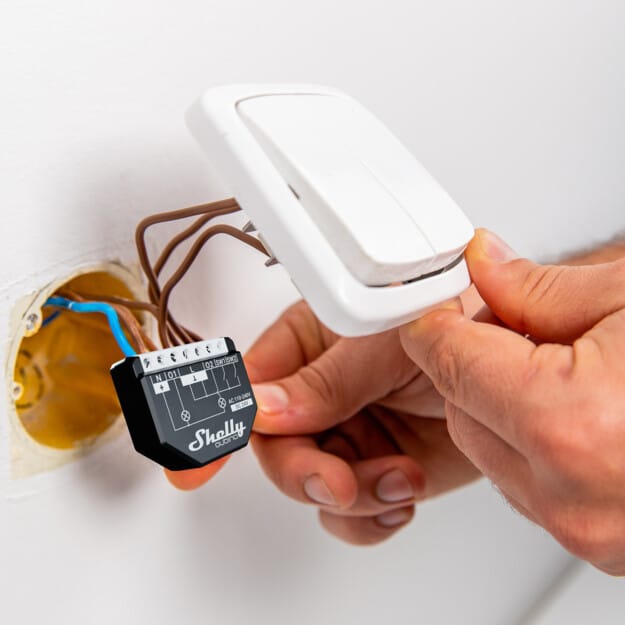

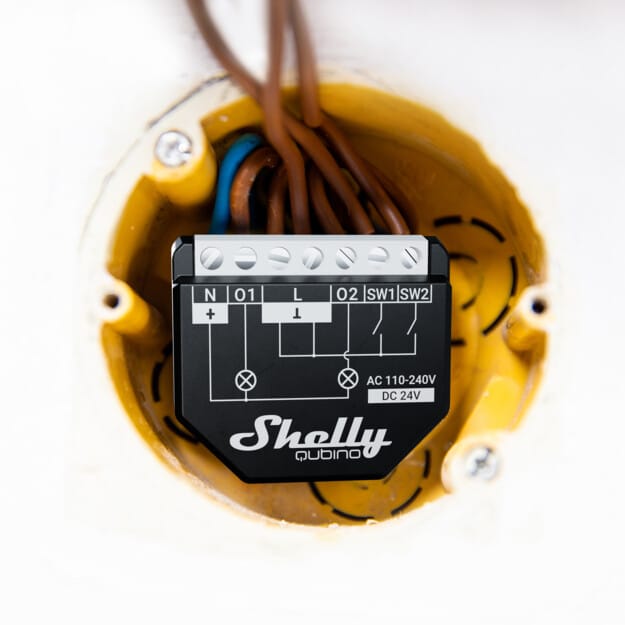

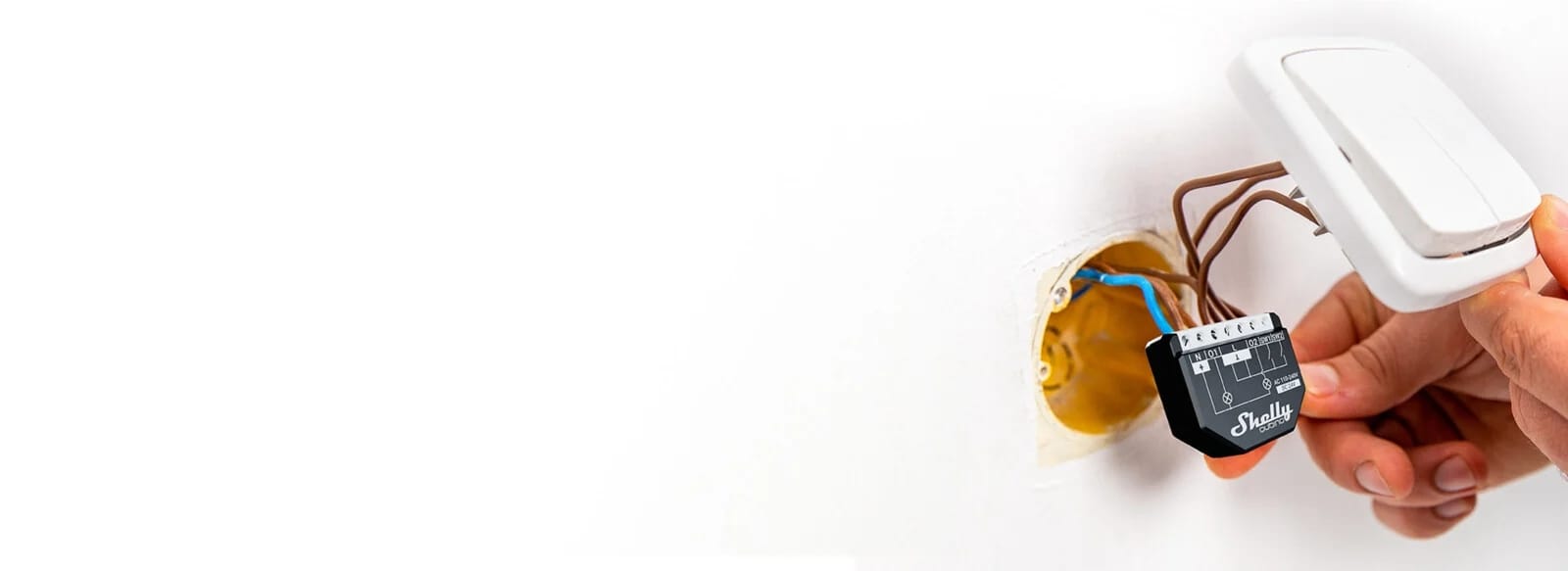

- Simple installation in most standard electrical boxes and switches
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
specifications
| Power supply | 110-240 V AC / 24 V DC +/-10% |
|---|---|
| Power consumption | < 0.3 W |
| Power measurement (W) | Yes |
| Max switching voltage AC | 240 V |
| Max switching current AC | 10 A per channel, 16 A total, 18 A total peak |
| Max switching voltage DC | 30 V |
| Max switching current DC | 10 A |
| Overheating protection | Yes |
| Overload protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave™ repeater: | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave™ frequency band: | 868,4 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in |
| Mounting | Wall console |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
