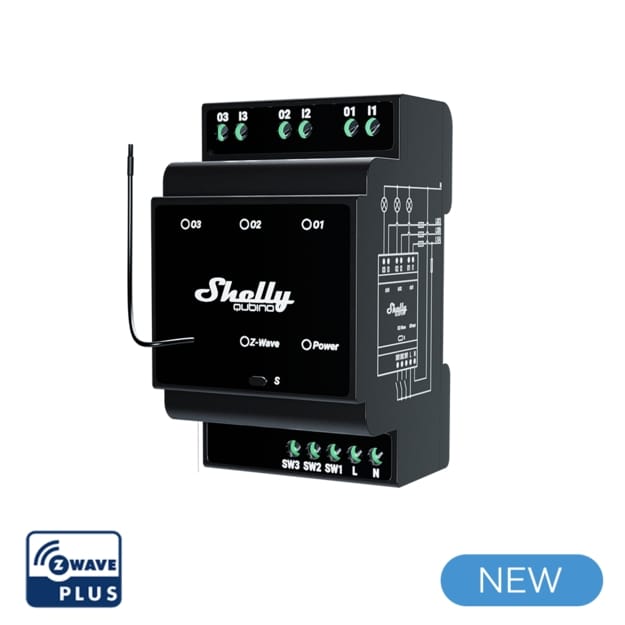

Shelly Qubino Wave Pro 3
82.00 JOD
Available
Professional 3-channel DIN rail Z-Wave® smart switch with dry contacts
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.
- 3 outputs, 16 A each. Total device maximum of 48 A.
- DIN-rail mountable
- Dry contacts
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device
specifications
| Power supply | 110 – 240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0.3W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A per channel, 48 A total |
| Max. switching voltage DC | 30 V |
| Max. switching current DC | 16 A per channel, 48 A total |
| Overheating protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave® repeater: | Yes |
| CPU | Z-Wave® S800 |
| Z-Wave® frequency bands | 868.4 MHZ |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 96x53x59 ± 0.5 mm / 3.78×2.01×2.32 ± 0.02 in |
| Weight | 150 g / 5.29 oz |
| Mounting | DIN rail |
| Screw terminals max. torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm / 20 to 14 AWG (green connector) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in (green connector) |
| Shell material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
