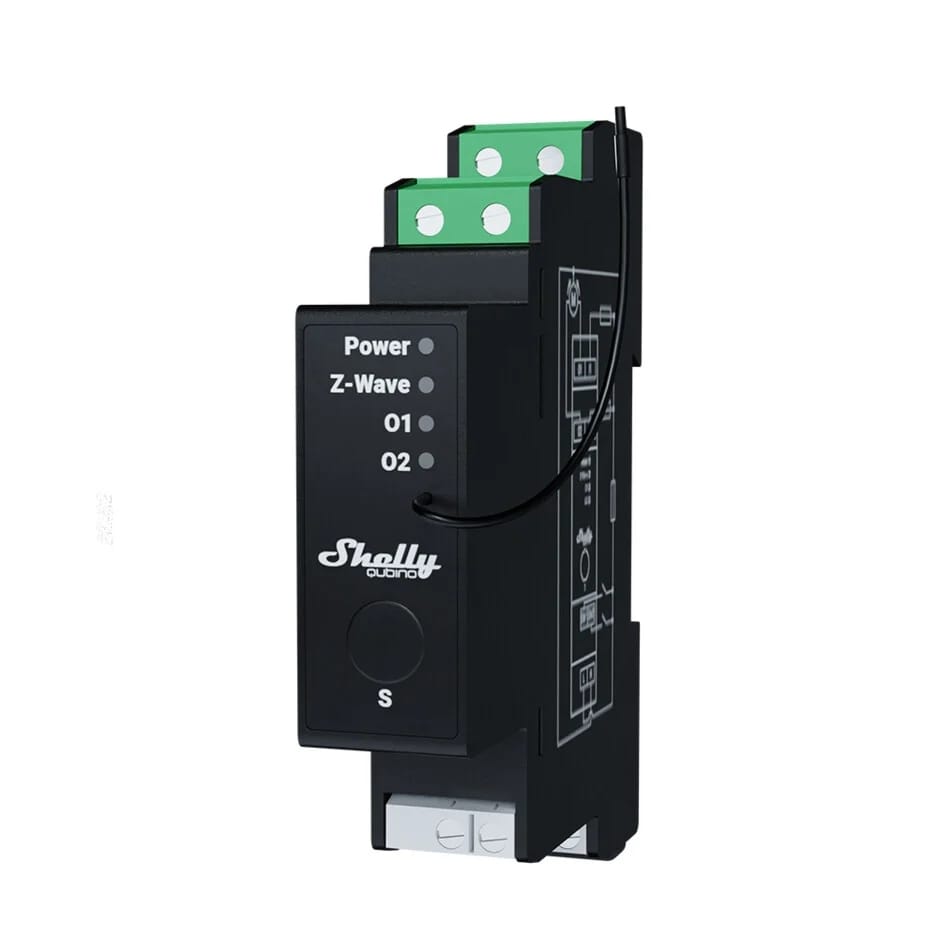

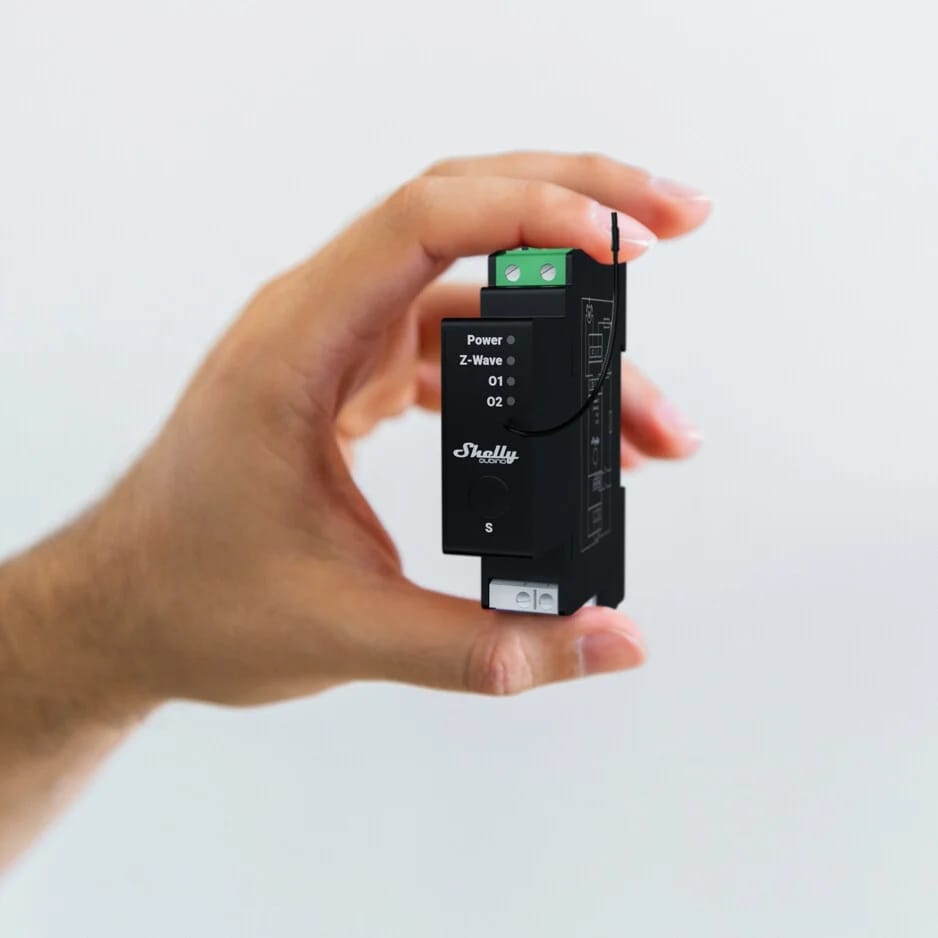

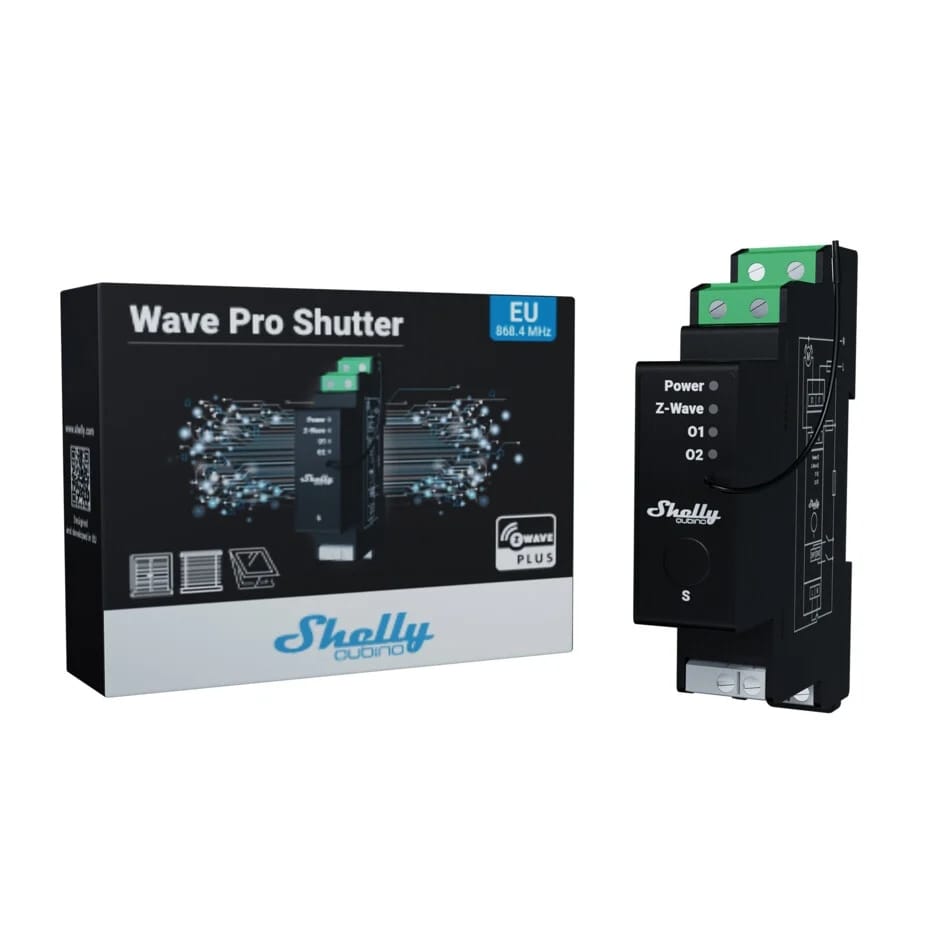

Shelly Qubino Wave Pro Shutter

115.00 JOD

Years Manufacturer Warranty

Available

Professional DIN rail Z-Wave® shutter control with power metering, 16 A per channel

Suitable for home and facility automation with remote control of motorized blinds, roller shutters, venetian blinds, awnings, etc. DIN-rail mountable inside a breaker box. It is recommended to use only motors with electronic or mechanical limit switches.

Control the tilt position (angle) of the venetian blind slats
Supports push-buttons/momentary switches, and toggle switches
Power metering
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Supports over-the-air firmware updates
Works with Z-Wave certified gateways and over 4,000 Z-Wave devices

*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.

specifications

Power supply	110 – 240 V AC, 50/60 Hz
Power consumption	< 0.3 W
Power measurement [W]	Yes
Max. switching voltage AC	240 V
Max. switching current AC	16 A per channel
Overheating protection	Yes
Overload protection	Yes
Overvoltage protection	Yes
Distance	Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave® repeater:	Yes
CPU?	Z-Wave® S800
Z-Wave® frequency bands	868,4 MHz
Maximum radio frequency power transmitted in frequency band(s)	< 25 mW
Size (H x W x D)	94x19x69 ± 0.5 mm / 3.70×0.75×2.71 ± 0.02 in
Weight?	75 g / 2.65 oz.
Mounting	DIN rail
Screw terminals max. torque	0.4 Nm / 3.54 lbin
Conductor cross section	0.5 to 2.5 mm / 20 to 14 AWG (green connector) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors)
Shell material	Plastic
Color	Black
Ambient temperature	-20°C to 40°C / -5°F to 105°F
Humidity	30% to 70% RH
Max. altitude	2000 m / 6562 ft.
